How To Draw Topographic Map
Re-scale the imported topographic map image make sure the 500 meter graphic map scale image will fit into the the 500 meter line Re-Scale Image STEP 3. Usually use an exaggerated scale.
Https Encrypted Tbn0 Gstatic Com Images Q Tbn And9gcrl0qgtlcypnphfgesolgasc6yripliyoylyaqu0v0 4bhheqzo Usqp Cau
Step 3 Create a compass direction the four arrows that designate North East South and West from which you will establish how the map will face.
How to draw topographic map. Universal transverse mercator UTM projection eastingnorthing geographic. As long as you know how to read them you should be able to visualize what that area looks like on the actual Earth. Click Data Sets unfold Digital Elevation and check ASTER GLOBAL DEM Click.
Contour lines never cross split or die off. I explain two ways of constructing a topographic profile. Contour intervals must be obeyed therefore the contour line elevations can only be multiples of.
Draw the scale on a corner of the map. Then repeat the process for each elevation. A contour line is level with respect to the earths surface just like the top of a building foundation.
From each mark indicate the vertical height with a dot on a. A topographic map is a map showing the third dimension elevation graphically. You also know that maps are classified on the basis of scale and functions.
If you have photoshop or similar programs then it is fairly easy. Go to httpsearthexplorerusgsgov and log in with your account. The UTM grid is a square grid system of lines depicted on maps and based on the transverse.
The difference in elevation between two adjacent contours is called the contour interval. When should I construct a profile. 18092016 Earth Science Review.
Degrees and minutes longitudelatitude The projection used for topographic maps is UTM. Here is how to do that. They serve the purpose of base maps and are used to draw all the other maps.
Draw a 1000 x 1000 meter border line box. Delimit your zone of interest on the map. Editstroke make the stroke thin.
Mark each contour line intersecting the paper. 43 Draw a rectangular viewport from the top left corner to the bottom right corner. Portion of a topographic map.
Each contour line on a topographic map represents a ground elevation or vertical distance above a reference point such as sea level. In order to do that we display what we call contour lines AKA elevation curves. This video provides an introduction to understanding topographic maps.
Place a folded sheet of paper along the line. The topographical maps which have been referred to in Chapter 1 are of utmost importance to geographers. But this isnt always easy.
All points along any one contour line are at the same elevation. Topographic Profiles Generating profiles. Once you do this you should be able to see your map in the Layout view.
31082019 Constructing a topographic map by drawing in contours can be easily done if a person remembers the following rules regarding contour lines. The Earth or map sheet topographic maps have two kinds of referencing systems. Topographical Maps Chapter 5 Topographical Maps You know that the map is an important geographic tool.
Load your map and on a new layer start using the free-draw selection tool lasso in phsp to trace an elevation line over the topology. Topographic Maps are a 2D way to show elevation and shape on a map. The compass is typically located on the corner of the poster.
3D models are an easier way to see what the Earth looks like - this is an easy set of instructions to make your own 3D model of an area shown on a topographic map. 24072020 In the case of constructing a topographic map you must extrapolate the placement of the appropriate elevation contour. Contour lines represent lines connecting points of equal elevation above sea level.
Draw a line between the two points bounding the desired profile area. Used to demonstrate the vertical scale of landforms. An introduction to creating a topographic map by drawing contour lines on an elevation field.
For topographic profiles you must extrapolate the contour of the landscape that is whether it goes up or down when faced with repeating elevation contours. Click on Rectangular at the top of the screen.
Constructing A Topographic Profile
Use The Topographic Map That You Constructed In Th Chegg Com
How To Construct A Cross Section From A Map Video Lesson Transcript Study Com
Rc 3 Part 4 Unit 9 Topographical Maps March 3 10 March 20 April 6 2017 Mrs Reese S Science Class Website
Building A Topographic Model
How To Draw Contour Lines On A Map Youtube
How To Draw Topographic Profiles Youtube
3
Topo Map Mania Lesson Teachengineering
Constructing A Topographic Profile
Virtual Lab 1 Topographic Maps Contours And Making Cross Sections Eesc1163 01 Summer 2017 Environment Iss Resources Galli
Topographic Maps And Slopes
What Are Contour Lines How To Read A Topographical Map 101 Greenbelly Meals
Exploring How Topographic Maps Are Made
Overview Of Topographic Maps Introductory Physical Geology Laboratory Manual First Canadian Edition V 3 Jan 2020
What Are Contour Lines On Topographic Maps Gis Geography
Learn To Draw Topographic Map Activities Geography Map Map Activities
Surveying Course Topographic Surveys And Maps
Virtual Lab 1 Topographic Maps Contours And Making Cross Sections Eesc1163 01 Summer 2017 Environment Iss Resources Galli
Make A Contour Map National Geographic Society

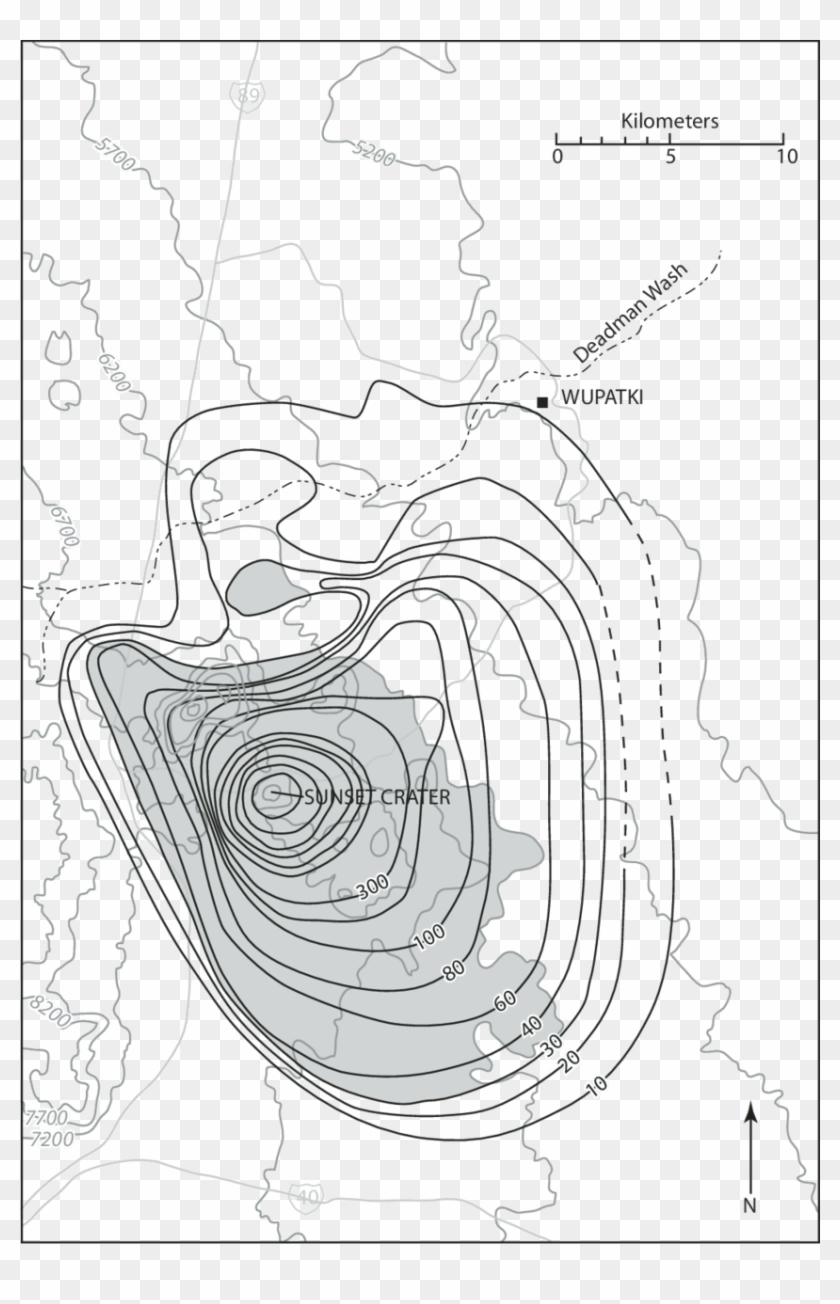

Jpg Library Download Crater Drawing Topographic Map Of Sunset Crater Hd Png Download 850x1280 894939 Pngfind
